Quick Connect with Manual Transfer Switch

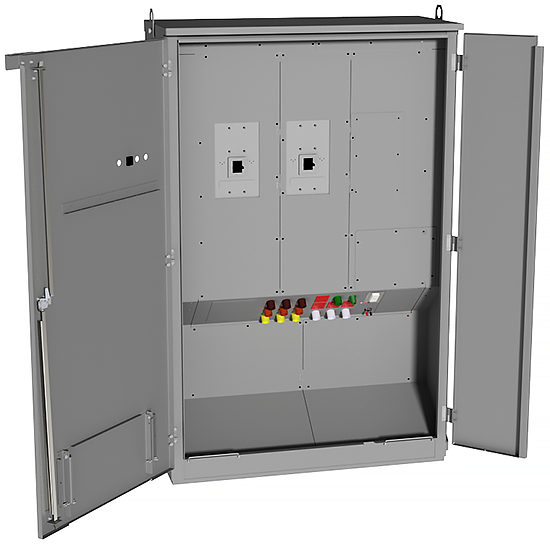

Lake Shore Electric’s Quick Connect Manual Transfer Switch(QCM) integrates camlock connectors on Source 2 of the MTS, offering an easy and efficient solution for switching between a permanent power source and temporary power source. Standard configuration includes mechanically interlocked UL 489 switches for both sources, grounded dead front covers, and color-coded camlock receptacles for temporary connections.
  • Self Protecting Main Contacts
  • 100% Rated to 600V Rated in 2-, 3-, 4- Pole Configuration

  • Permanent Connected Handle for Manual Transfer Under Load
  • Mechanical Interlocks to Prevent Paralleling of Sources
  • Optional Integral Short Circuit Protection

  • Color Coded Camlock Connections by Voltage
  • Integral Service Entrance Option
  • Optional Switch Position Lights and Contacts

  • 150 to 4000 Amps
  • NEMA 3R, 3R Stainless
  • Welded Construction
  • 400A Rated Series 16 Camlock Receptacles

  • Dead Front Design
  • Custom Designs Available
