Quick Connect 3 Breaker

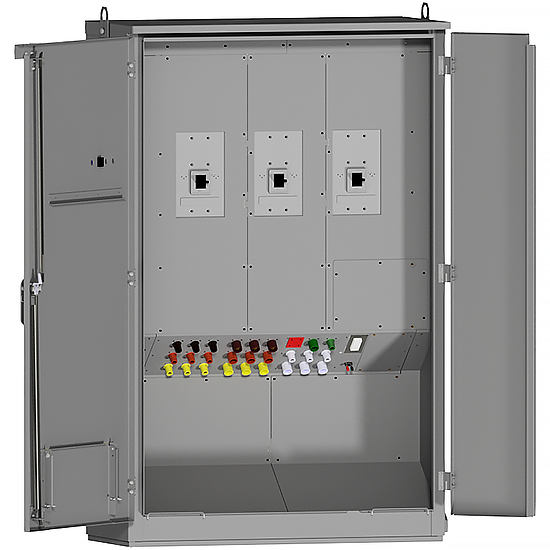

Lake Shore Electric’s Quick Connect Three Breaker Cabinet(QC3) adds an additional layer of coordinating a load bank to the QCM series. The QC3 provides emergency systems that rely on a single alternate source of power with a switching means to connect a portable or temporary alternate source of power during the duration of a maintenance or repair. An additional breaker is supplied with dedicated load bank camlock style plugs as a permanent installation for connection of portable load bank cables. Switches can be purchased with thermal protection on the secondary source and integral service entrance.
  • Self Protecting Main Contacts
  • Dedicated Load Bank Camlock Style Connection Compartment
  • Dedicated Portable Generator Cam Lock Style Connection Compartment
  • Dedicated Permanent Generator Breaker For Full System Switching
  • Mechanical Interlocks to Prevent Paralleling of Sources
  • Color Coded Camlock Connections by Voltage
  • Integral Short Circuit Protection
  • All Commercially Available UL Listed Options on Circuit Breakers Available
  • 150 to 4000 Amps
  • NEMA 3R, 3R Stainless
  • Welded Construction
  • 100% Rated Silber Plated Copper Bus
  • 400A Rated Cam Lock Style Connections for <400A Units
  • Dead Front Design
  • Custom Designs Available
