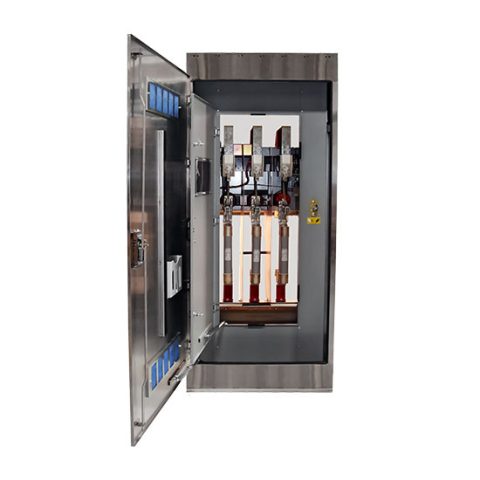

Metal Enclosed Load Interrupter Switch
Metal Enclosed Load Interrupter Switch
Lake Shore Electric's Metal Enclosed Load Interrupter Switches offer customers with an industry recognized solution for protecting medium voltage circuits. Metal enclosed load interrupter switches can support one circuit in a single structure, or group mounting for feeding multiple circuits. Switches can be configured for bus connection to transformers to reduce footprints and simplify installation.
- Available in Fused or Non-Fused Devices
- Epoxy Coated Bus
- Custom Sheet Metal and Bus Fabrication for Transformer and Busway Connections
- Utility Metering Compartments Built to Local Utility Standards
- Electrical Assist Available
- Stand Alone or Group Mounted Line Up Configurations
- Front and Rear Access Required
- Outdoor and Indoor Ratings
- IEEE C37.20.3 – 1987
- 5-38kVac Class Available
- Sections in either NEMA 1, 3R, or 3R Stainless Steel Construction
- Ratings up to 63kAIC
- 100% Rated Epoxied Silver Plated Bus
- Stored Energy and Spring Assist Mechanism
- Blown Fuse Indicators Available
- Substation and Distribution Surge Protection Available
