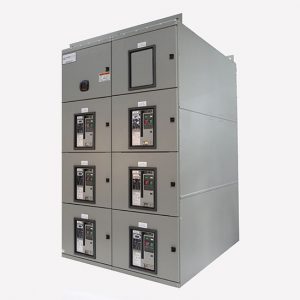

Medium Voltage Metal Clad Switchgear

Lake Shore Electrics Metal Enclosed Switchgear provides a compact space savings footprint while isolating the low voltage control compartments from the medium voltage bus and breaker compartments. Front access only and educed height equipment offer customers with the peace of mind when space is limited.
  • Draw Out type switching and interrupting devices capable of moving between a connect and disconnect position with self-alignment and self-coupling
  • Major parts of the switchgear to be completely enclosed by grounded metal barriers for compartmentalization
  • Custom Sheet Metal and Bus Fabrication for Transformer and Busway Connections
  • Utility Metering Compartments Built to Local Utility Standards
  • All primary bus conductors and connections covered with insulation material throughout
  • Front and Rear Access Required
  • Outdoor and Indoor Ratings
  • IEEE C37.20.2 – 198
  • 5-38kVac Class Available
  • Sections in either NEMA 1, 3R, or 3R Stainless Steel Construction
  • Ratings up to 63kAIC
  • 100% Rated Epoxied Silver Plated Bus
  • SIS Control Wire Standard
  • Remote Racking Breakers Available
  • Arc Flash Sensing Relays Available
